Capacity(kg/h): 1500-11500
Power(kw): 18.5-110
Normal Force(kn): 1250-5000

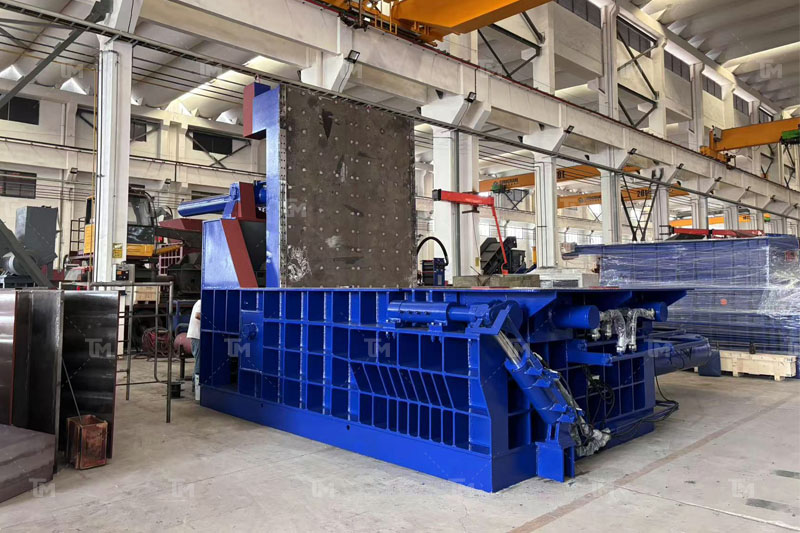

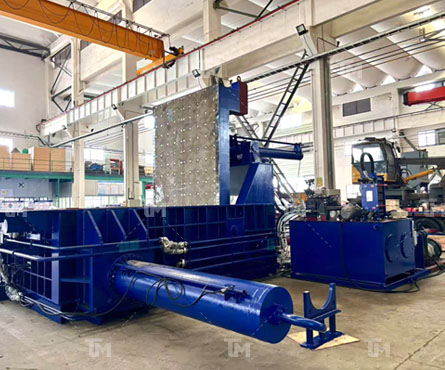

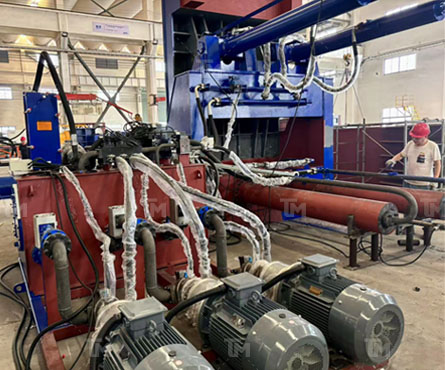

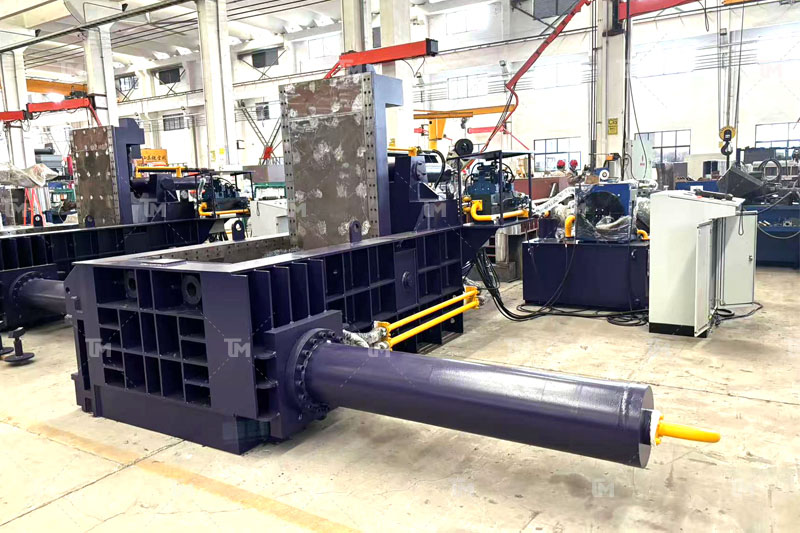

Hydraulic balers are mainly used in waste processing plants, crop straws and recycling in-dustries. The working principle of the hydraulic packer is to extrude various compressed materials such as thin metal, plastic bottles, cans, wastepaper bins, paint buckets, plastic films, clothing and clothes into rectangles or squares, which has the characteristics of high compression efficiency and large space saving, and improves operation efficiency!

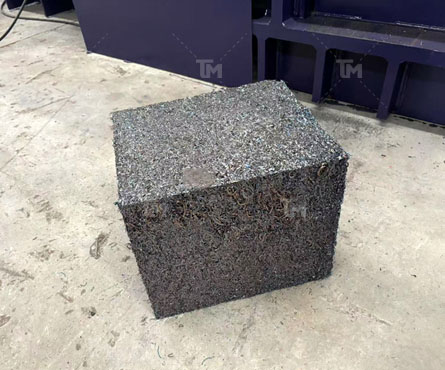

Mainly used for UBC, scrap metal, metal shavings, scrap steel, scrap aluminum, cartons, scrap metal, PET bottles, textiles and other materials etc.
PLC control system, touch screen control, with feed detection, automatic compression, unmanned operation.
Chamber size and bale size can be customized according to customer requirements.
Automatic baling device, fast speed,low failure rate and easy to clean and maintain.
| Model | Normal Force | Press Box Size | Bale Size | Capacity | Power |
| (kn) | (L*W*H)mm | (W*H)(mm) | (kg/h) | (kw) | |
| HC81T-1250A | 1250 | 1200*700*600 | （250-450）X300X300 | 1500-2000 | 18.5 |
| HC81T-1600A | 1600 | 1600*1000*800 | （400-600）X400X400 | 2000-3000 | 22 |
| HC81T-1600B | 1600 | 1600*1000*800 | （400-650）X400X400 | 2000-3000 | 30 |
| HC81T-2000A | 2000 | 1600*1200*800 | （400-700）X400X400 | 2500-4000 | 30/37 |
| HC81T-2000B | 2000 | 1800*1400*900 | （400-700）X400X400 | 2500-4000 | 30/37 |
| HC81T-2500A | 2500 | 2000*1400*900 | （400-700）X500X500 | 3500-5000 | 44/60 |
| HC81T-2500B | 2500 | 2000*1400*1200 | （450-800）X600X600 | 3500-5000 | 60 |
| HC81T-3150A | 3150 | 2000*1400*1200 | （450-700）X600X600 | 3500-5000 | 60 |
| HC81T-3150B | 3150 | 2600*1750*1200 | （400-800）X650X650 | 4000-5000 | 90 |
| HC81T-4000A | 4000 | 2600*1750*1200 | （500-1000）X650X650 | 5000-6500 | 90 |
| HC81-4000B | 4000 | 3000*2000*1200 | （600-1000）X600X700 | 6000-8500 | 110 |
| HC81T-5000 | 5000 | 5000*2000*1200 | （400-1000）X600X700 | 9000-11500 | 110 |
